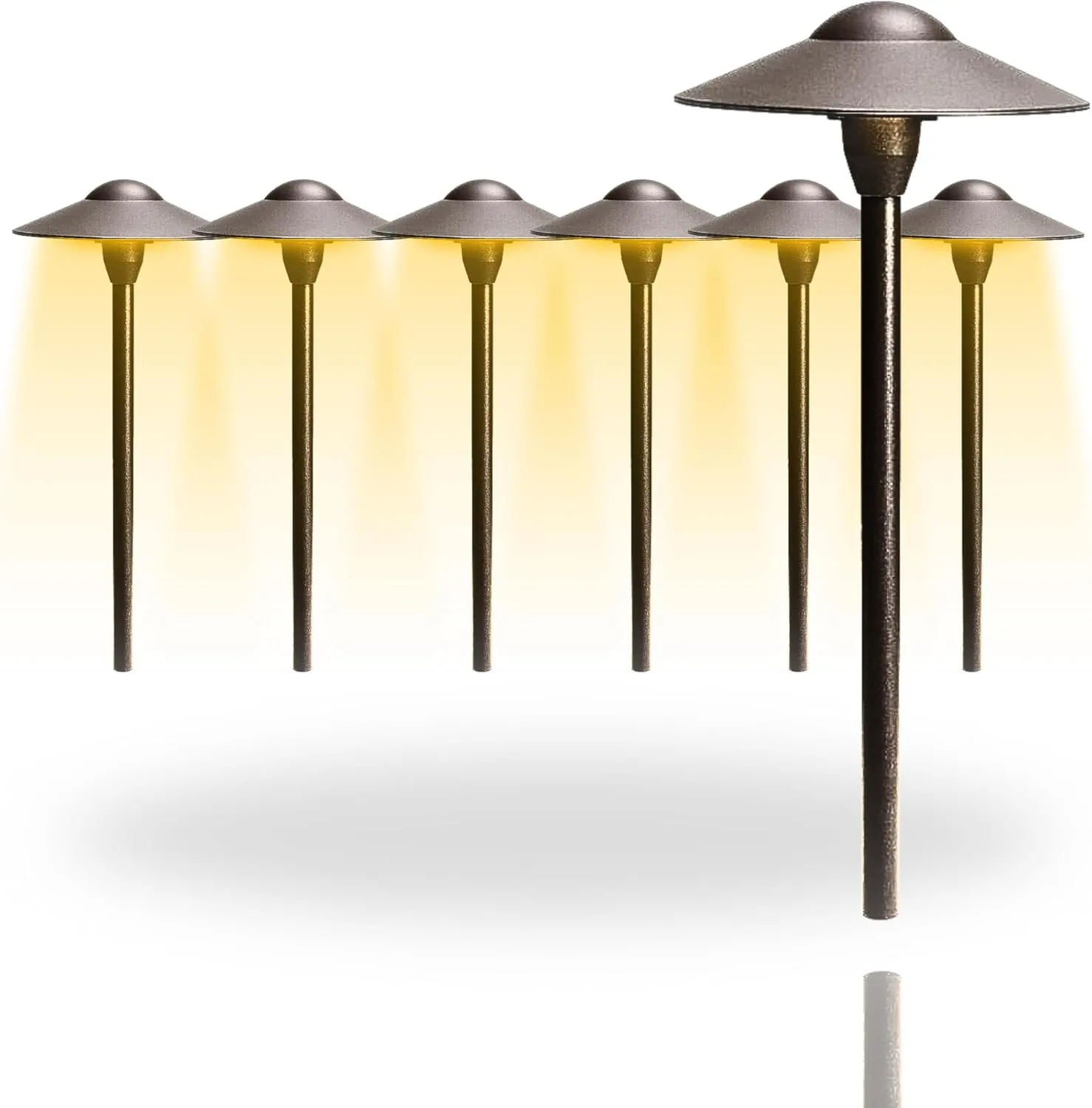

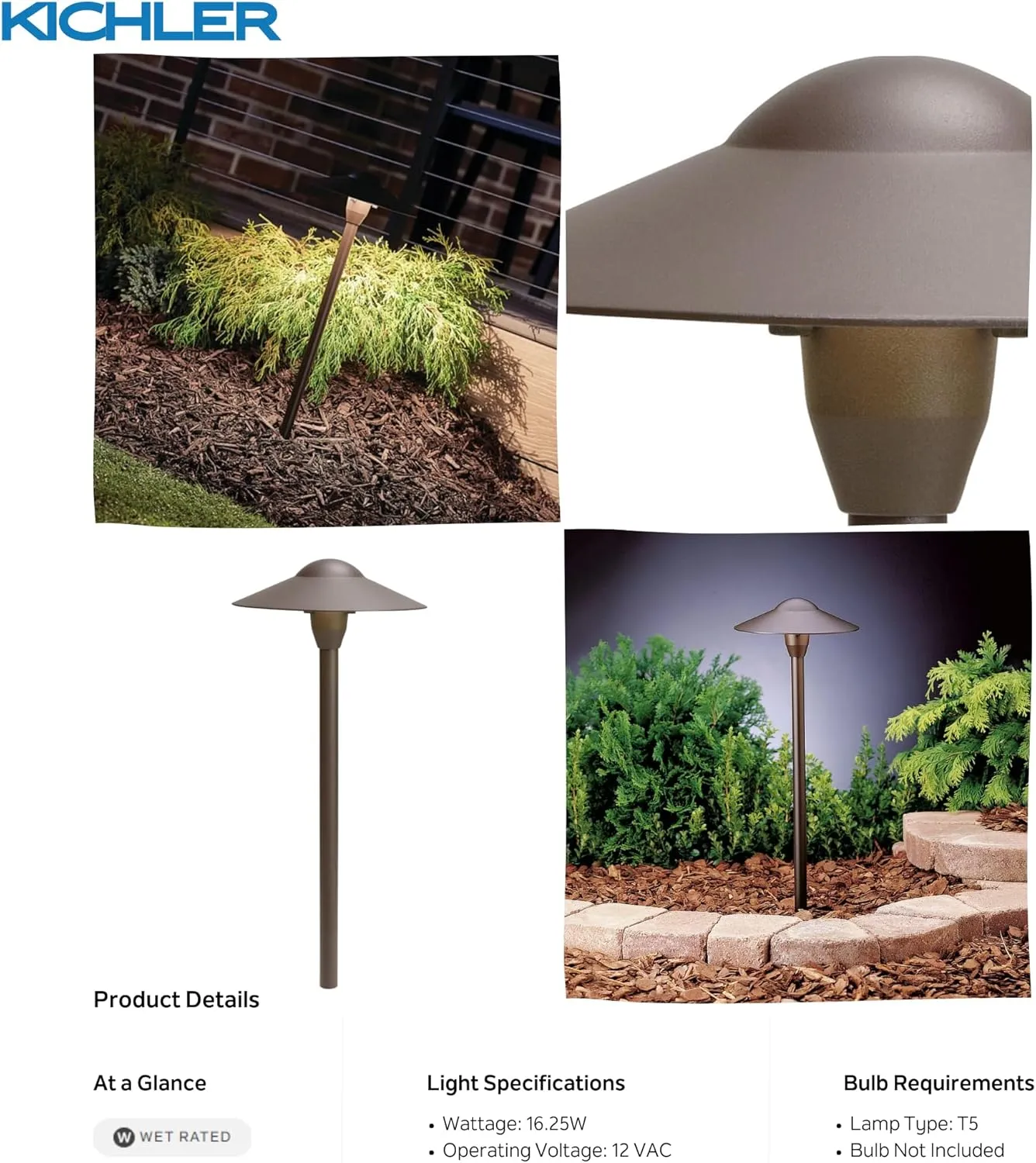

- 【LUXURY】Add a touch of luxury and ambience to your outdoor living space with these 16.25W path lights. Featuring a modern, streamlined design, these lights provide a warm, inviting glow that will have your patio feeling luxe and exclusive. Perfect for condo living, these energy-efficient lights are the perfect way to add a chic and sophisticated touch to your outdoor area.
- 【INSTRUCTIONS CONTINUED】1) WARNING: This fixture is not to be installed within 10 feet (3M) of a pool, spa, or fountain. 2) This fixture is to be used only with a power unit (transformer) rated a maximum of 300 W (25 AMPS) 15 volts. 3) The #18 ga. fixture wire is not intended for direct burial. 4) Direct burial-rated wire is to be buried a minimum of 6" (152mm) beneath the surface of the ground. NOTE: If additional Direct Burial wire is needed, contact your local Kichler landscape distributor
- 【INSTRUCTIONS CONTINUED】8 GA wire can be purchased in length of 250’ (76 M),15503-BK, 10 GA wire can be purchased in length of 250’ (76 M), 15504-BK. 12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’ (76 M), 15502-BK; 500’ (152M), 15473AZT; 15506-BK. 5) Do not use tung-sten halogen lamps 6) Wiring must be made with approved/listed wire connection device(s) suitable for the application. Do not exceed manufacturers’ wiring specifications for the size and quantity of conductors.
- 【ASSEMBLY AND INSTALLATION】1) Determine the desired location for mounting the fixture. 2) At desired location, hammer stake (A) into ground. To avoiddamage to stake, place a board on top of stake while hammering. If ground is hard and stake is difficult to install, make a crosscut in ground using a flat shovel. 3) Clear away area in ground at wireway hole (B) in top of stake (A). 4) Pass cable through fixture head (F) through stem (C). 5) Screw fixture head (F) onto stem (C).
- 【ASSEMBLY AND INSTALLATION CONTINUES】 6) Pass 12V cable from stem (C) through wireway hole (B) in stake. 7) Screw stem (C) into stake (A). If assembly does not look straight, adjust by pushing or pulling on stake only. 8) Install provided lamp. 9) Make wire connections using supplied wire nuts following instructions on bag.
- Kichler Landscape Lighting
